    12V/24V Vending Machine Gear Motor For Spiral Spring

    Ask Lasest Price
    Brand Name : Micron
    Model Number : Vending Machine Gear Motor
    Certification : CE
    Price : plz contact us
    Payment Terms : T/T
    • Product Details
    • Company Profile

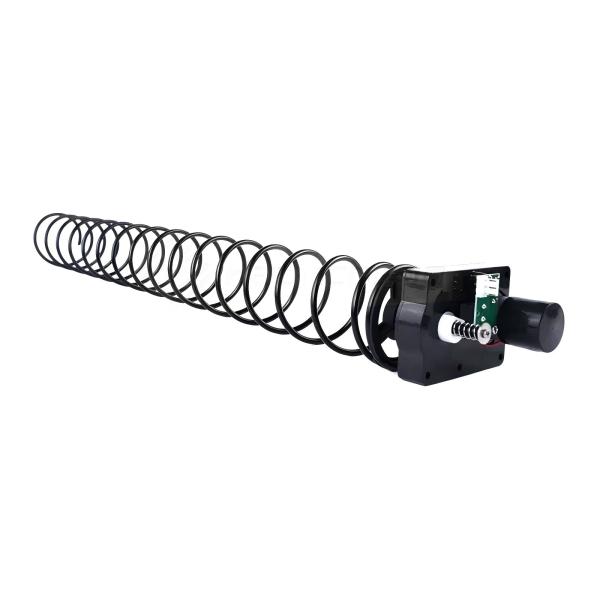

    12V/24V Vending Machine Gear Motor For Spiral Spring

    Technical Parameters

    • Rated Voltage: 12VDC/ 24VDC
    • No-load Speed: 23.5±3RPM
    • No-load Current: ≤0.18A
    • Stall Current: ≤1.35A
    • Max Output Torque: ≥48kg.cm. High torque type: ≥60kg.cm
    • Output Rotate Direction: CCW/CW ( Face to turnplate)


    1. High torque, 40% comparatively higher than similar products on the market.
    2. Long life: At the conditions 24VDC, environment temperature 20℃±3℃, CW running 30 seconds, with 10 seconds stop interval in a cycle, accumulate operation more than 80000 circles, gear motor is effective.
    3. Approved by CE testing.
